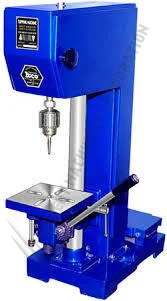

Tapping Machine

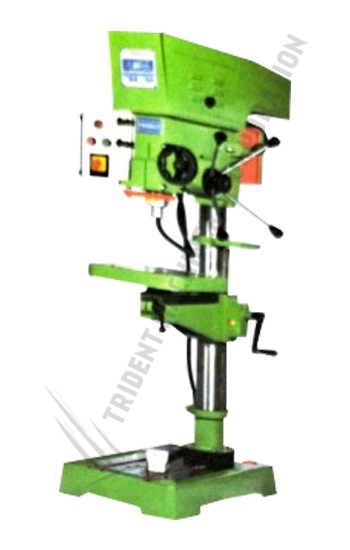

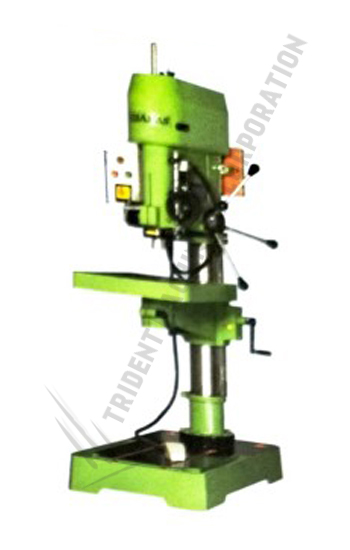

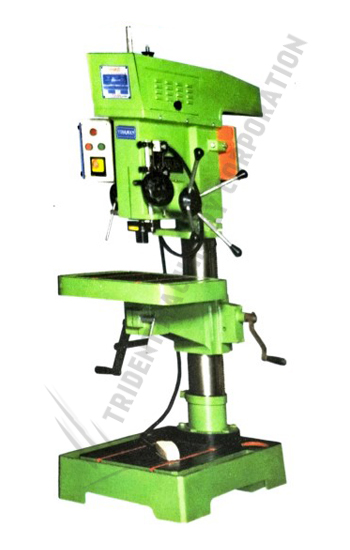

	V+PT-6	V+PT-7	V+PT-8
Drilling Capacity in Cast	25 mm	38 mm	40 mm
Drilling Capacity in Steel	23 mm	35 mm	38 mm
Tapping Capacity in Steel	20 mm	30 mm	35 mm
Tapping Capacity in Cast	24 mm	37 mm	38 mm
Column to Center fo Spindle	255 mm	320 mm	350 mm
Spindle Nose to Table Distance	635 mm	750 mm	750 mm
Spindle Nose to Base Plate	1000 mm	1100 mm	1200 mm
Spindle Travel	150 mm	255 mm	255 mm
Speed Range 1440 R.P.M.	1-H.P. 3 Phase	1.5-H.P. 3 Phase	2-H.P. 3 Phase
Tapping in Spindle	MT 3	MT 4	MT-4
Pillar Diameter	90 mm	120 mm	135 mm
Pillar Length	1380 mm	1450 mm	1450 mm
V-Belt	B- 46	B-60	B-60
Weight Approx	225 Kg	330 Kg.	500 Kg
