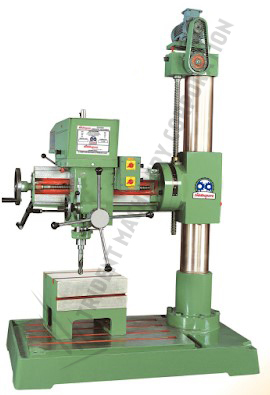

Radial Drilling Machine
Radial Drilling Machine available in Fine Feed, Auto Feed and all Geared.
Slotting Machine available in 100, 175, and 225 stroke.
| Model No. |
PT-5
|
PT-12
|
PTH-16
|
38 PRD
|
175 KBS
|
| Capacity |
|
|
|
|
|
| Drilling in MS |
-
|
-
|
6
|
38
|
Vertical Stroke - 175
|
| Drilling in C.I |
-
|
-
|
-
|
38
|
No.of Speeds - 2
|
| Tapping in Steel |
5
|
12
|
-
|
-
|
Rotary table Dia - 273
|
| Tapping in C.I |
7
|
12
|
-
|
-
|
Bed Length - 655
|
| Tapping Depth |
-
|
15
|
-
|
-
|
Bed Width 250
|
| Spindle |
|
|
|
|
|
| Spindle Travel |
-
|
-
|
57
|
225
|
Head Height - 495
|
| Spindle Tapper |
-
|
-
|
-
|
MT-4
|
Dist btwn table to head - 178
|
| No. of Spinlde Speed |
8
|
-
|
2
|
8
|
Longitudinal travel of Rotary table - 178
|
| Range of Spindle Speed |
590-1680
|
-
|
5000-10000
|
65-1980
|
Max.Dia When job at Center -456
|
| No of Feed |
-
|
-
|
-
|
2
|
Stroke per minute 60 - 106
|
| Feed Value mm/rev |
-
|
-
|
-
|
0.08-0.04
|
-
|
| Working Range |
|
|
|
|
|
| Table Stroke Manually |
-
|
55
|
-
|
-
|
|
| Max./M in. D lst. between Spindle Centre to Column Face |
104
|
150
|
155
|
855/3110
|
|
| Max. Dist. between Spindle Nose to Table Face |
140
|
335
|
225
|
-
|
|
| Max./Min. Dist. between Spindle Nose to Base Plate |
-
|
-
|
430
|
860/200
|
|
| Dia meter of Column |
46.80
|
63.50
|
46.80
|
165
|
|
| Size of Working Table |
168X 168
|
265 X 265
|
220 X 220
|
4 65 X 340
|
|
| Size of Base Plate |
380 X 250
|
430X 300
|
265 X 385
|
1285 X 685 X 130
|
|
| Power |
|
|
|
|
|
| Drilling Head Motor |
0.5 H.P, 3@
14 4 0 RPM |
1 H.P., 3@
14 40 RPM |
0.5 H.P..3@
2800 RPM |
1.5 H.P.3@
14 40 RPM |
1 H.P.,3@ ,
1440 RPM |
| Arm Eevating Head Motor |
-
|
-
|
-
|
0.5H .P.,3@
14 4 0 RPM |
|
| Coolant Pump Motor |
-
|
-
|
-
|
0.25 H.P .,3@
2880 RPM |
|
| General |
|
|
|
|
|
| Weight of the machine |
50kg
|
125kg
|
52kg
|
950kg
|
370kg
|
| V-Belt Size |
A-39
|
A -3 9 & A -70
|
900X 20 Flat
|
B-47 & A -23
|
|
| Overall Dimension of machine |
780 X 580 X 250
|
530X 400 X 1250
|
550 X 360 X 930
|
2000 X 1330 X 915
|
1070 X 1360 X 750
|
| Wooden case Dimension |
880 X 680 X 350
|
600 X 450 X 1300
|
650 X 460 X 1030
|
2100 X 1430 X 1015
|
1100 X 1400 X 800
|
V+R-1

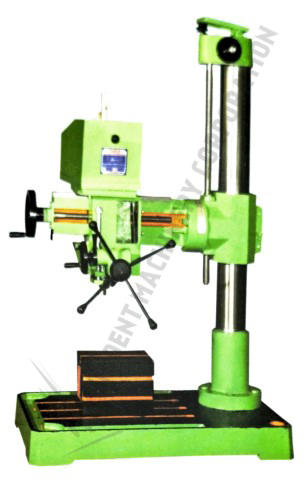

25mm Drilling Cum Tapping Machine
| Drilling Cap in Mild Steel |
25 mm
|
| Pillar Diameter |
130 mm
|
| Spindle Nose to Table Distance |
570 mm
|
| Spindle Nose to Base Distance |
775 mm
|
| Spindle Center to Pillar Face |
6370 mmn
|
| Taper in Spindle |
MT-3 MT-4
|
| Number of Speed |
8 Speed
|
| Range of Speed |
120 to 2800
|
| Table Size |
205 x 250x2
|
| Base Size |
700 x 100 mm
|
| Spindle Travailing |
230 mm
|
| Pillar Length |
1220 mm
|
| Overall Height |
1550 mm
|
| V-Belt Section |
B-40"&A-20"
|
| Mother 3 Phase 1440 RPM |
1HP&0.5 H.P
|
| Weight Approx |
500 Kg.
|

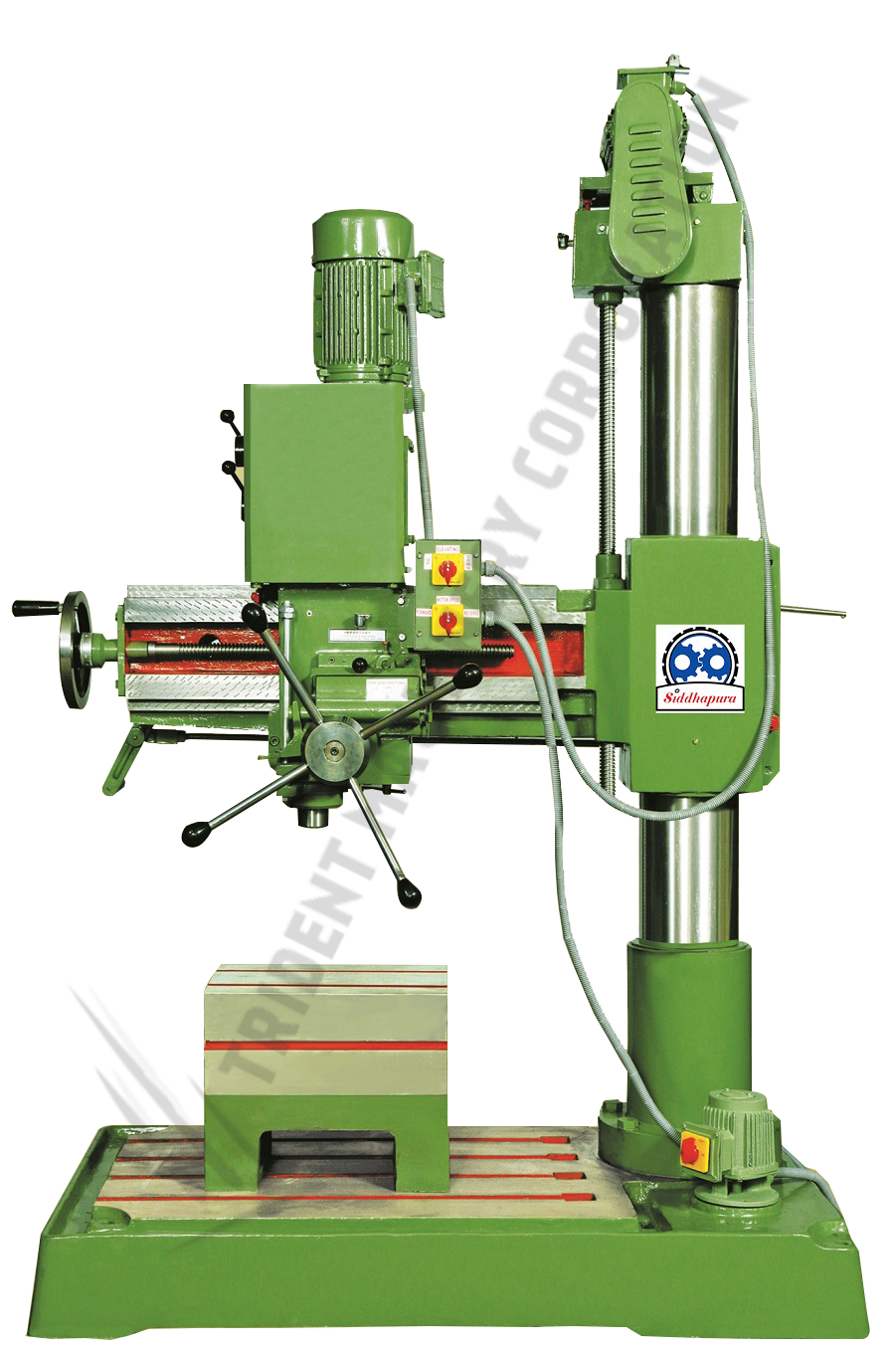

UNIVERSAL RADIAL DRILLING MACHINE
- Main Spindle made from Alloys Steel with 6 slots is machined by Hobber Machine and MT-Bore is provided internally grinded.
- Provides 8 speeds by accurate balanced pairs of cone pulleys, which runs on two Ball Bearings.
- Spindle Sleeve is properly grinded and hardened is guided in honned, Drill Head bore spindle is mounted on five ball & roller bearing for smooth and accurate running.
- By simple adjustment of only Tapper Wedge facility to set Drill Head on arm guide way.
- Top Cover Provided with window for changing gears and setting V-Belt for desired R.P.M.
- Lever facility for V-Belt Tension.
- Gears made from best Quality material are Helical teethed on imported hobbing machine for smooth and noiseless running.
- Pillar & other parts being provided in machine are ground and finished by WMW GERMAN MAKE GRINDING MACHINE.
- Gradations are provided on protector for swivelling of Radial
- Arm to required degree.
- Automatic adjustable depth control.
- Auto as well as manual feeds.
| Capacity |
SER I & II
|
| Drilling Capacity |
38 mm
|
| Drill Head |
|
| 1. Spindle Nose |
MT 4
|
| 2. Spindle Travel |
220
|
| 3. No. of Spindle Speed |
8
|
| 4. Range of Spindle Speed (RPM) |
62-1980
|
| 5. Range of Power feed |
(2) 0.08-0.04
|
| POWER |
H.P./ V-Belt
|
| Main Motor |
1.5/B-46
|
| Arm Elevating Motor |
0.5 / A-23
|
| WORKING TABLE |
|
| LxWxH |
380 x 300 x 300
|
| WORKING RANGE |
|
| 1. Drilling Radius Max./Min. |
895 / 440
|
| 2. Max. / Min. Distance Column to spindle |
810/360
|
| 3. Maximum Drill Head Travel |
450
|
| 4. Max./Min. base Plate to Spindle. |
930 / 230
|
| 5. Diameter of Column |
165
|
| 6. Swivel of arm L/R side |
90"
|
| BASE PLATE |
|
| 1. LxWxH |
750 x 1250 x 150
|
| 2. Working Surface |
820 x 610
|
| 3. No. of T-Slots |
(4) 16
|
| 4. Overall Height |
2000
|
| Wooden Case LxWxH |
1250 x 1550 x 2000
|
All Geared Head Radial Drilling Machine
| Discription / Model No. |
SER-40
|
| Capacity |
|
| Drilling capacity (MS) |
40mm
|
| Drill Head |
|
| Tapper in Spindle |
MT-4
|
| Spindle Travel |
220mm
|
| No. of Speed / Range (RPM) |
9/80 to 1265
|
| Spindle Feed |
Hand Fine /Auto Power
|
| No. od Auto Feed & Range |
2/ 0.08 to 0.04 mm/rev
|
| Working Range |
|
| Drilling Radius Max/Min |
895mm/ 440mm
|
| Max/Min. Distance Column to Spindle |
820mm / 310mm
|
| Max. Drill Head Travel |
450mm
|
| Max./Min. Spindle to Base |
930mm / 230mm
|
| Column Dia. |
180mm
|
| Column Structure |
Single Column
|
| Power Supply |
|
| Main Head |
1.5HP 3Phase 1440RPM
|
| Elevating |
0.5HP 3Phase 1440RPM
|
| Working Table |
|
| L x W x H |
380x300x300 mm
|
| Base Plate |
|
| L x W x H |
750x1250x150 mm
|
| Base Size (Machined Area) |
820 x 610mm
|
| No. of T-Slots |
4/ M-16
|
| Floor Space Required |
1250x1550x2000mm
|
