Milling Machine

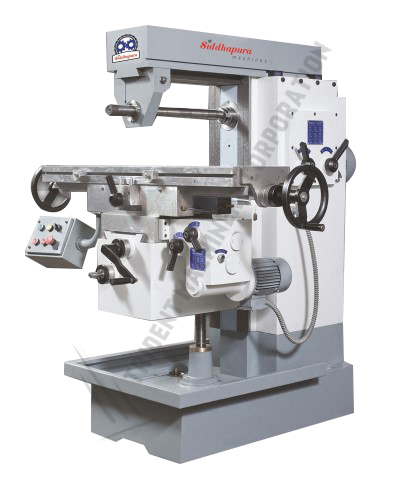

UNIVERSAL MILLING MACHINE
All casting are graded and stress relived for sustained accuracy
- Power opeated feeds.
- Wide range of feeds and speed.
- Table side, cross side & knee side having flat guide-ways with taper providing strength to stand with heavy cutting forces.
- Main spindle made on EN steel hardened and ground , mounted on taper roller bearing ensures vibration free cutting.
- Gears are made on EN 353 steel and are hardened and ground
- Central lubrication for guide ways and lead screw, splash lubrications for main and feed gearing
- Coolant supply by separate pump & motor through nozzles & fittings, Built-in-chip removal & coolant collecting tray on base plate.
| Working Surface |
1100X280mm
|
| No.of T-slot & Size |
3/M-12
|
| Distance Between T Slots |
70mm
|
| Table Swivel |
+45°
|
| Range |
|
| Longitudinal Feed ( Automatic) |
580 mm
|
| Longitudinal Feed By Hand |
650 mm
|
| Cross Feed By Hand |
225 mm
|
| Vertical Feed By Hand |
400 mm
|
| Maximum Safe Weight On Table |
300 kg.
|
| Spindle | |
| Spindle Arbor |
25.4 mm
|
| Spindle Nose Taper |
ISO 40
|
| Distance From Spindle to Table Min Max |
0 - 275 mm
|
| Throat Distance With Vertical Head |
270 mm
|
| No .of Spindle Speed |
9
|
| Range Of Spindle Speeds |
60 to 1000 RPM
|
| Feeds |
|
| No.of Feeds |
6
|
| Longitudinal Feed |
10, 16, 25, 46, 71, 111 mm/min
|
| Drive |
|
| Spindle Motor |
2 HP
|
| Table Feed Motor |
0.5 HP
|
| Coolant Pump Motor |
0.1 HP
|

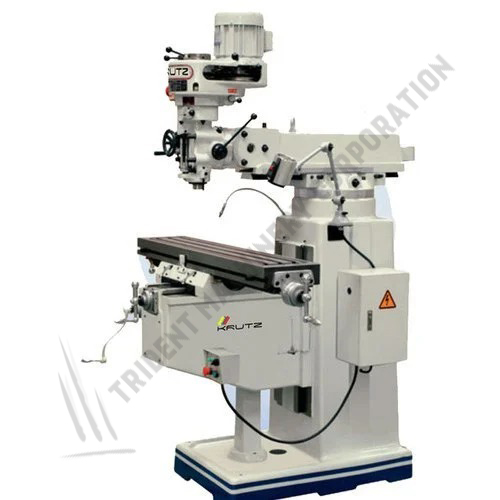

Vertical Turret milling machine
| Brand |
KRUTZ
|
| Table Sizes |
230 x 1067 mm(9" x 42")/254x1270 mm (10" x 50")/254x1370 mm (10" x 54")
|
| Model Ram Types |
2A/3A/3.5A
|
| Long Travels |
650 mm/850 mm/950 mm
|
| Cross Travels |
305 mm/400 mm
|
| Vertical Travels |
400 mm/420 mm
|
| Ram Travels |
312 mm to 470 mm
|
| Distance From Spindle Nose to Table Surfaces |
0-415 mm/0-455 mm
|
| Spindle Hold Taper |
Standards 16 steps (shif grade)65-4500 rpm (Optional) Variable 65-4200 rpm
|
| Spindle Motors |
2.25 kW/3 hp
|
| Head Swivels |
90 d
|
| Head Tiltings |
45 d
|
| Weights |
1100 kg/1380 kg/1420 kg
|
| Minimum Order Quantity |
1 Piece
|
