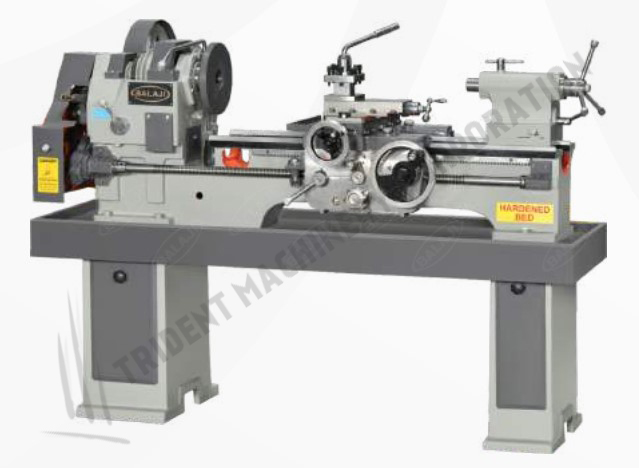

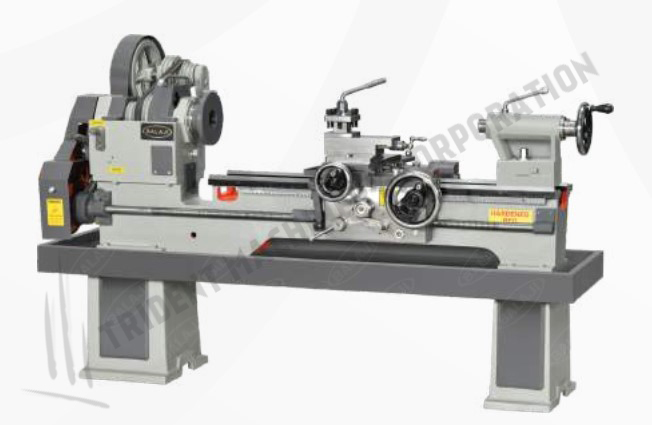

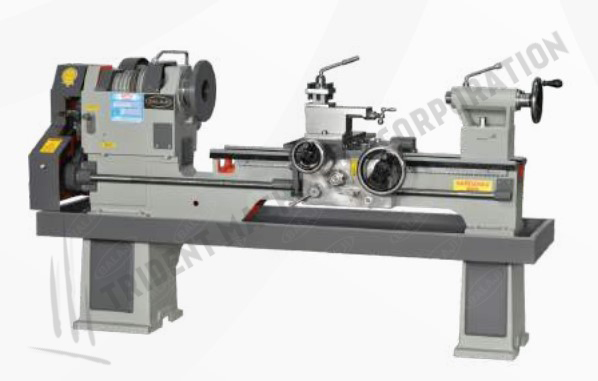

Cone Pulley Light Duty Lathe Machine

  • Model : VL
Download Brochure Watch Video
Bed
Length of Bed
1370mm (4'-6")
Admit between center
660 mm
Type of Bed
Hardened Bed Ways
Swing Over Bed
325mm
Height of Center
165mm
Width of Bed
240mm
Swing Over Cross Slide
175mm
Swing in Gap
500mm
Length of Gap in Front of Face Plate
115mm
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
40 to 950 RPM
Taper in Spindle
MT-5
Spindle Bore
38mm
Spindle Nose
Threaded
Spindle Threads
8 TPI
Threads
LEAD SCREW DIAMETER / PITCH
25,4 mm / 4 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm TO 6 mm PITCH
INCH: 19 / 2 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0,5 mm TO 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.165 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.04 -0.485 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
38.1 mm
TAPER IN TAIL STOCK QUILL
MT - 3
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
175 mm
COMPOUND SLIDE TRAVEL
125 mm
TAIL STOCK SLEEVE TRAVEL
120 mm
TOOL POST SQUARE
88 mm
TOOL SHANK SIZE
20 mm
SUITABLE ELECTRICAL HP
1 HP (3 phase)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

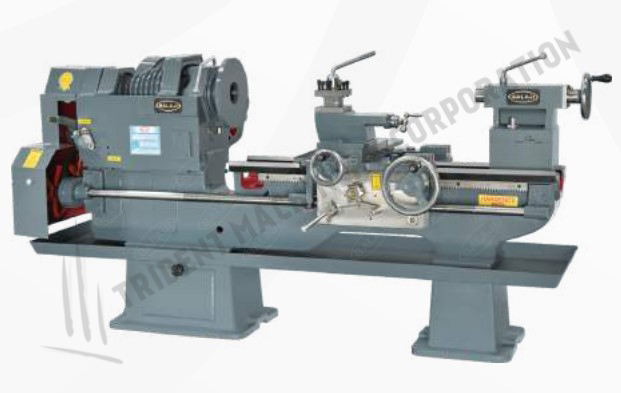

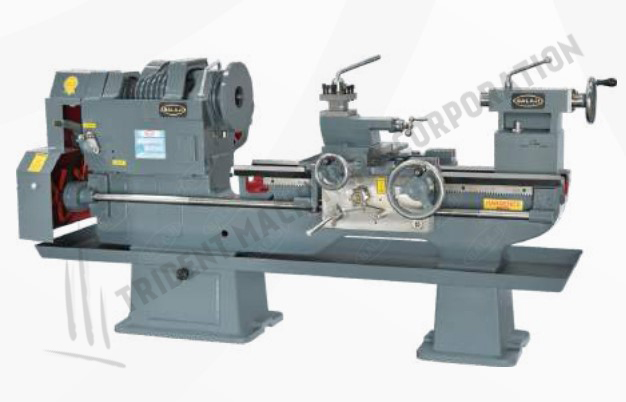

Cone Pulley Medium Duty Lathe Machine

  • Model : VM
Download Brochure Watch Video
Bed
Length of Bed
1825mm (6")
Admit between center
1000 mm
Type of Bed
Hardened Bed Ways
Swing Over Bed
420mm
Height of Center
215mm
Width of Bed
277mm
Swing Over Cross Slide
240mm
Swing in Gap
620mm
Length of Gap in Front of Face Plate
125mm
Main Spindle
No. of Spindle Speed
6
Spindle Speed Range
40 to 550 RPM
Taper in Spindle
MT-6
Spindle Bore
50mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
31.75 mm / 4 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 19 / 2 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.165 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.04 -0.485 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
50.8 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
230 mm
COMPOUND SLIDE TRAVEL
140 mm
TAIL STOCK SLEEVE TRAVEL
140 mm
TOOL POST SQUARE
100 mm
TOOL SHANK SIZE
20 mm
SUITABLE ELECTRICAL HP
2 HP (3 phase)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

Cone Pulley Medium Duty Lathe Machine

  • Model : VM 4S-255
Download Brochure Watch Video
Bed
Length of Bed
1900mm (6'-3")
Admit between center
1020 mm
Type of Bed
Hardened Bed Ways
Swing Over Bed
495mm
Height of Center
255mm
Width of Bed
277mm
Swing Over Cross Slide
310mm
Swing in Gap
700mm
Length of Gap in Front of Face Plate
150mm
Main Spindle
No. of Spindle Speed
6
Spindle Speed Range
50 to 465 RPM
Taper in Spindle
MT-6
Spindle Bore
80mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
31.75 mm / 4 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 19 / 2 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.165 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.04 -0.485 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
50.8 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
270 mm
COMPOUND SLIDE TRAVEL
150 mm
TAIL STOCK SLEEVE TRAVEL
140 mm
TOOL POST SQUARE
120 mm
TOOL SHANK SIZE
25 mm
SUITABLE ELECTRICAL HP
2 HP / 3HP (3 phase)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

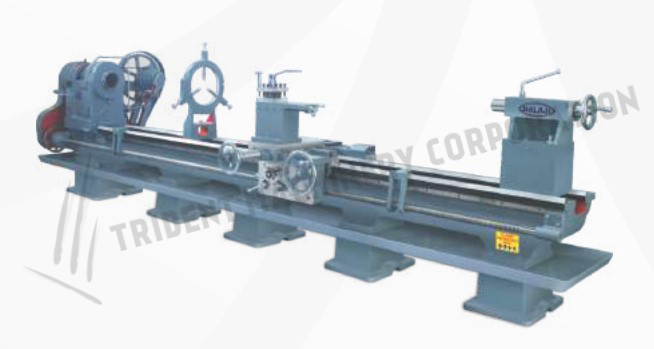

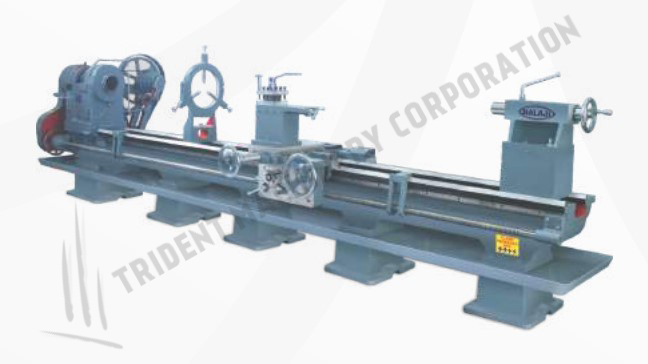

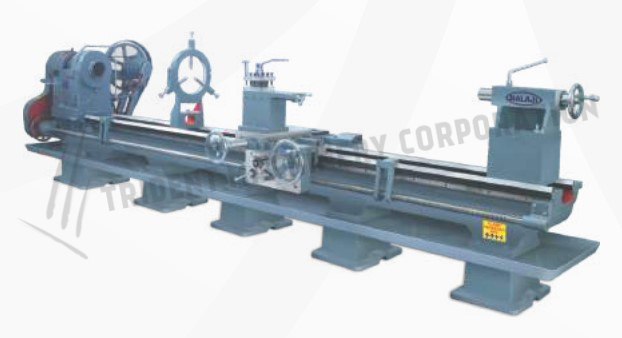

Cone Pulley Heavy Duty Lathe Machine

  • Model : VH-13
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
Admit between center
1000 mm
1600 mm
1900 mm
2500 mm
3100 mm
3700 mm
4300 mm
4900 mm
Type of Bed
Hardened Bed Ways
Height of Center
267mm (10-1/2")
304mm (12")
Swing Over Bed
525mm
600mm
Swing Over Cross Slide
320mm
395mm
Swing in Gap
800mm
875mm
Width of Bed
325mm
Length of Gap in Front of Face Plate
200mm
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
40 to 340 RPM
Taper in Spindle
MT-6
Spindle Bore
50mm / 79mm / 104mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
38 mm / 4 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 19 / 2 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.165 - 1.996 mm
RANGE OF TRANSVERSE FEEDS
0.04 - 0.485 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
60.3 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
280 mm
COMPOUND SLIDE TRAVEL
145 mm
TAIL STOCK SLEEVE TRAVEL
170 mm
TOOL POST SQUARE
120 mm
TOOL SHANK SIZE
25 mm
SUITABLE ELECTRICAL HP
3 HP / 5HP (3 phase)*

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

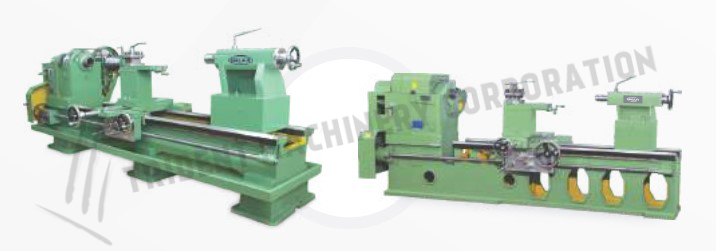

Cone Pulley Heavy Duty Lathe Machine

  • Model : VH-15
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
1000 mm
1600 mm
1900 mm
2500 mm
3100 mm
3700 mm
4300 mm
4900 mm
5500 mm
6100 mm
6700 mm
Type of Bed
Hardened Bed Ways
Height of Center
304mm (12")
355mm (14")
380mm (15")
Swing Over Bed
580mm
680mm
730mm
Swing Over Cross Slide
390mm
490mm
540mm
Swing in Gap
890mm
990mm
1040mm
Width of Bed
375mm
Length of Gap in Front of Face Plate
200mm
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
40 to 340 RPM
Taper in Spindle
MT-6
Spindle Bore
79mm / 104mm / 129mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
38 mm / 4 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 19 / 2 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.165 - 1.996 mm
RANGE OF TRANSVERSE FEEDS
0.04 - 0.485 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
60.3 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
325 mm
COMPOUND SLIDE TRAVEL
190 mm
TAIL STOCK SLEEVE TRAVEL
170 mm
TOOL POST SQUARE
145 mm
TOOL SHANK SIZE
25 mm
SUITABLE ELECTRICAL HP
5 HP (3 phase)*

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

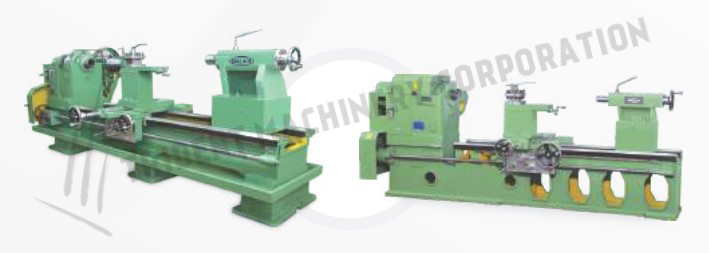

Cone Pulley Heavy Duty Lathe Machine

  • Model : VH-15
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
1000 mm
1600 mm
1900 mm
2500 mm
3100 mm
3700 mm
4300 mm
4900 mm
5500 mm
6100 mm
6700 mm
Type of Bed
Hardened Bed Ways
Height of Center
304mm (12")
355mm (14")
380mm (15")
Swing Over Bed
580mm
680mm
730mm
Swing Over Cross Slide
390mm
490mm
540mm
Swing in Gap
890mm
990mm
1040mm
Width of Bed
375mm
Length of Gap in Front of Face Plate
200mm
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
40 to 340 RPM
Taper in Spindle
MT-6
Spindle Bore
79mm / 104mm / 129mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
38 mm / 4 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 19 / 2 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.165 - 1.996 mm
RANGE OF TRANSVERSE FEEDS
0.04 - 0.485 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
60.3 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
325 mm
COMPOUND SLIDE TRAVEL
190 mm
TAIL STOCK SLEEVE TRAVEL
170 mm
TOOL POST SQUARE
145 mm
TOOL SHANK SIZE
25 mm
SUITABLE ELECTRICAL HP
5 HP (3 phase)*

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

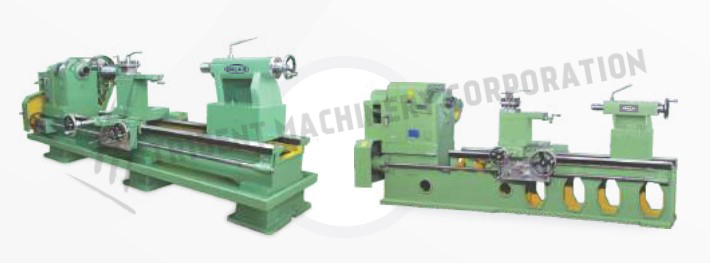

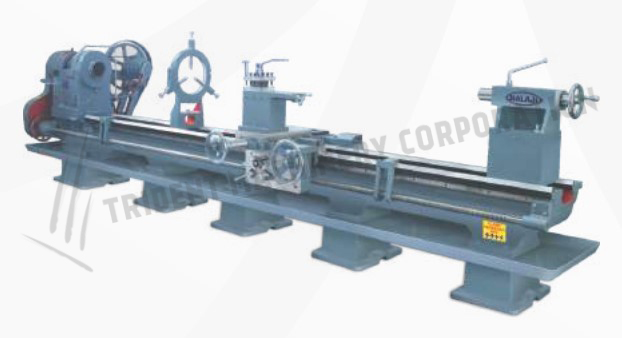

Cone Pulley Extra Heavy Duty Lathe Machine

  • Model : VH-18
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
700 mm
1300 mm
1600 mm
2200 mm
2800 mm
3400 mm
4000 mm
4600 mm
5200 mm
5800 mm
6400 mm
Type of Bed
Hardened Bed Ways
Height of Center
406mm (16")
457mm (18")
Swing Over Bed
785mm
885mm
Swing Over Cross Slide
480mm
580mm
Swing in Gap
1100mm
1200mm
Width of Bed
455mm
Length of Gap in Front of Face Plate
250mm
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
20 to 200 RPM
Taper in Spindle
MT-6
Spindle Bore
79mm / 104mm / 129mm / 152mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
44.4 mm / 2 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 20 / 1 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.16 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.04 - 0.5 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
76 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
500 mm
COMPOUND SLIDE TRAVEL
250 mm
TAIL STOCK SLEEVE TRAVEL
250 mm
TOOL POST SQUARE
175 mm
TOOL SHANK SIZE
38 mm
SUITABLE ELECTRICAL HP
5 HP / 7.5HP (3 phase) (960 RPM)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

Cone Pulley Extra Heavy Duty Lathe Machine

  • Model : VH-20
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
700 mm
1300 mm
1600 mm
2200 mm
2800 mm
3400 mm
4000 mm
4600 mm
5200 mm
5800 mm
6400 mm
Type of Bed
Hardened Bed Ways
Height of Center
457mm (18")
508mm (20")
Swing Over Bed
885mm
985mm
Swing Over Cross Slide
580mm
680mm
Swing in Gap
1200mm
1300mm
Width of Bed
508mm
Length of Gap in Front of Face Plate
250mm*
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
20 to 200 RPM*
Taper in Spindle
MT-6
Spindle Bore
79mm / 104mm / 129mm / 152mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
44.4 mm / 2 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 20 / 1 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.16 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.04 - 0.5 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
76 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
520 mm
COMPOUND SLIDE TRAVEL
250 mm
TAIL STOCK SLEEVE TRAVEL
250 mm
TOOL POST SQUARE
175 mm
TOOL SHANK SIZE
38 mm
SUITABLE ELECTRICAL HP
5 HP / 7.5HP (3 phase) (960 RPM)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

Cone Pulley Extra Heavy Duty Lathe Machine

  • Model : VH-22
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
700 mm
1300 mm
1600 mm
2200 mm
2800 mm
3400 mm
4000 mm
4600 mm
5200 mm
5800 mm
6400 mm
Type of Bed
Hardened Bed Ways
Height of Center
508mm (20")
558mm (22")
Swing Over Bed
985mm
1085mm
Swing Over Cross Slide
680mm
780mm
Swing in Gap
1300mm
1400mm
Width of Bed
558mm
Length of Gap in Front of Face Plate
250mm*
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
20 to 200 RPM*
Taper in Spindle
MT-6
Spindle Bore
79mm / 104mm / 129mm / 152mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
44.4 mm / 2 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 20 / 1 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.16 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.04 - 0.5 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
76 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
550 mm*
COMPOUND SLIDE TRAVEL
250 mm
TAIL STOCK SLEEVE TRAVEL
250 mm
TOOL POST SQUARE
175 mm
TOOL SHANK SIZE
38 mm
SUITABLE ELECTRICAL HP
7.5 HP (3 phase) (960 RPM)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

Cone Pulley Extra Heavy Duty Lathe Machine

  • Model : VH-24
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
550 mm
1150 mm
1450 mm
2050 mm
2650 mm
3250 mm
3850 mm
4450 mm
5050 mm
5650 mm
6250 mm
Type of Bed
Hardened Bed Ways
Height of Center
558mm (22")
609mm (24")
Swing Over Bed
1085mm
1185mm
Swing Over Cross Slide
775mm
875mm
Swing in Gap
1400mm
1500mm
Width of Bed
609mm
Length of Gap in Front of Face Plate
250mm*
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
15 to 150 RPM*
Taper in Spindle
MT-6
Spindle Bore
79mm / 104mm / 129mm / 152mm
Spindle Nose
Threaded
Spindle Threads
6 TPI
Threads
LEAD SCREW DIAMETER / PITCH
44.4 mm / 2 TPI
NOS. OF THREADS/RANGE
(WITHOUT NORTON GEAR BOX)
METRIC: 13 / 1 mm to 6 mm PITCH
INCH : 20 / 1 to 24 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC 24 /0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
19
RANGE OF LONGITUDINAL FEEDS
0.16 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.04 - 0.5 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
100 mm
TAPER IN TAIL STOCK QUILL
MT - 5
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
600 mm*
COMPOUND SLIDE TRAVEL
250 mm
TAIL STOCK SLEEVE TRAVEL
250 mm
TOOL POST SQUARE
200 mm
TOOL SHANK SIZE
38 mm
SUITABLE ELECTRICAL HP
7.5 HP / 10 HP (960 RPM)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

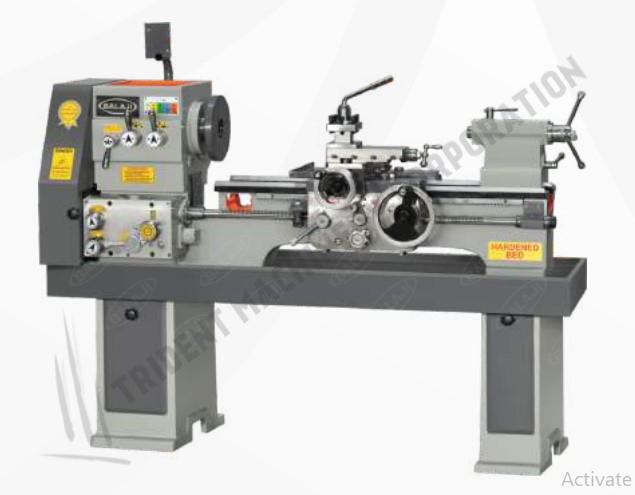

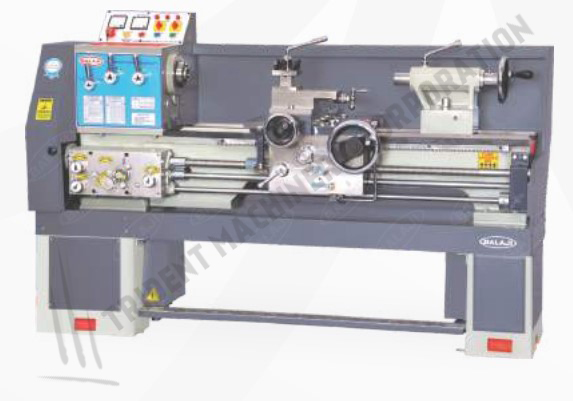

Geared Head Light Duty Lathe Machine

  • Model : VGL-165
Download Brochure Watch Video
Bed
Length of Bed
1370mm (4'-6")
Admit between center
660mm
Type of Bed
Hardened Bed Ways
Swing Over Bed
325mm
Height of Center
165mm
Width of Bed
240mm
Swing Over Cross Slide
175mm
Swing in Gap
500mm
Length of Gap in Front of Face Plate
115mm
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
40 to 1200 RPM*
Taper in Spindle
MT-5
Spindle Bore
38mm
Spindle Nose
Threaded / A2 - 4
Threads
LEAD SCREW DIAMETER / PITCH
25.4 mm / 4 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
40
RANGE OF LONGITUDINAL FEEDS
0.066 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.0165 - 0.50 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
38.1 mm
TAPER IN TAIL STOCK QUILL
MT - 3
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
175mm
COMPOUND SLIDE TRAVEL
125 mm
TAIL STOCK SLEEVE TRAVEL
120 mm
TOOL POST SQUARE
88 x 88 mm
TOOL SHANK SIZE
20 mm
SUITABLE ELECTRICAL HP
1 HP (3 Phase)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray
  •   Norton Gear Box with Single Shaft

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT

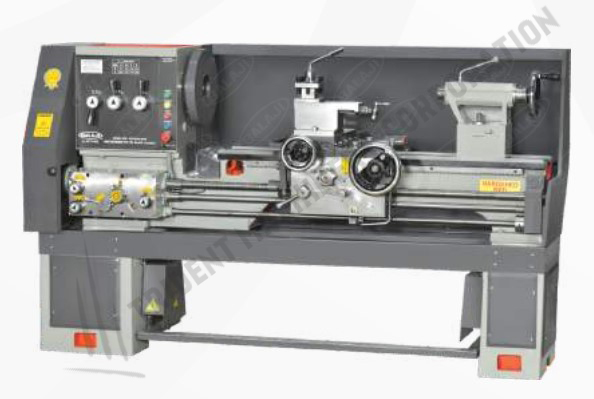

Geared Head Medium Duty Lathe Machine

  • Model : VGM-215-DELUXE
Download Brochure Watch Video
Bed
Length of Bed
1825mm (6")
Admit between center
1000mm
Type of Bed
Hardened Bed Ways
Swing Over Bed
420mm
Height of Center
215mm
Width of Bed
277mm
Swing Over Cross Slide
240mm
Swing in Gap
620mm
Length of Gap in Front of Face Plate
125mm
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
40 to 1200 RPM*
Taper in Spindle
MT-5
Spindle Bore
38mm
Spindle Nose
A2 - 4
Threads
LEAD SCREW DIAMETER / PITCH
31.75 mm / 4 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
40
RANGE OF LONGITUDINAL FEEDS
0.066 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.0165 - 0.50 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
50.8 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
230mm
COMPOUND SLIDE TRAVEL
140 mm
TAIL STOCK SLEEVE TRAVEL
140 mm
TOOL POST SQUARE
100mm
TOOL SHANK SIZE
20 mm
SUITABLE ELECTRICAL HP
2 HP (3 Phase)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray
  •   Norton Gear Box with Single Shaft

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT
  •   PEDAL STOP
  •   ELECTRICAL THIRD SHAFT

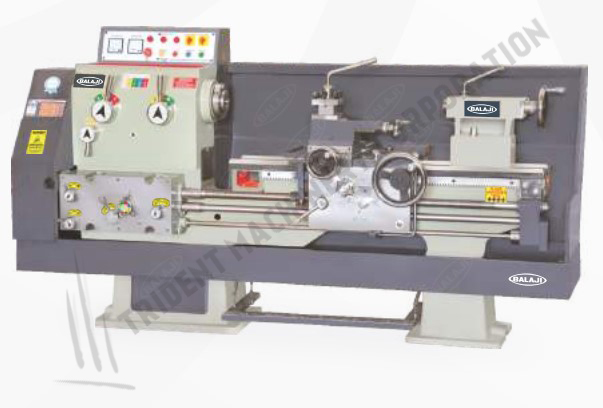

Geared Head Medium Duty Lathe Machine

  • Model : VGM-255
Download Brochure Watch Video
Bed
Length of Bed
1900mm (6'-3")
Admit between center
1020mm
Type of Bed
Hardened Bed Ways
Swing Over Bed
495mm
Height of Center
255mm
Width of Bed
277mm
Swing Over Cross Slide
310mm
Swing in Gap
700mm
Length of Gap in Front of Face Plate
150mm
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
55 to 1200 RPM*
Taper in Spindle
MT-6
Spindle Bore
65mm
Spindle Nose
A2 - 6
Threads
LEAD SCREW DIAMETER / PITCH
31.75 mm / 4 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
40
RANGE OF LONGITUDINAL FEEDS
0.066 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.0165 - 0.50 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
50.8 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
270mm
COMPOUND SLIDE TRAVEL
150 mm
TAIL STOCK SLEEVE TRAVEL
140 mm
TOOL POST SQUARE
120mm
TOOL SHANK SIZE
25 mm
SUITABLE ELECTRICAL HP
3 HP (3 Phase)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray
  •   Norton Gear Box with Single Shaft

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT
  •   PEDAL STOP
  •   ELECTRICAL THIRD SHAFT

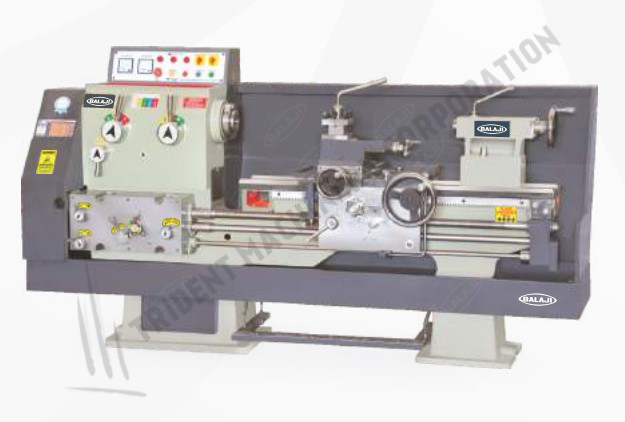

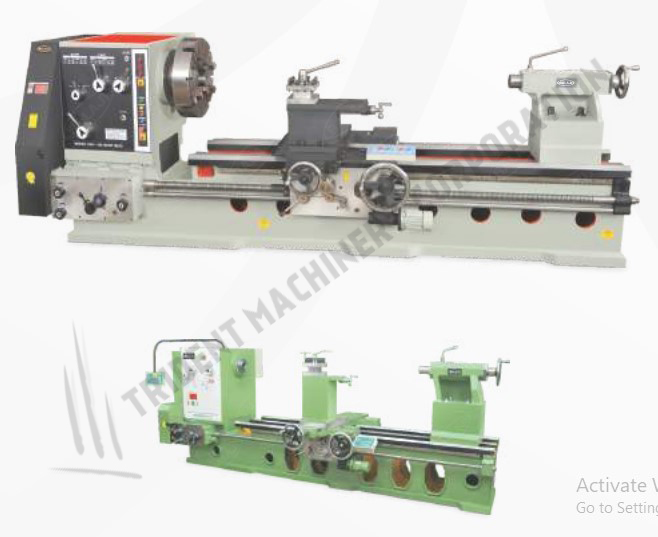

Geared Head Heavy Duty Lathe Machine

  • Model : VGH-267
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
Admit between center
1000 mm
1600 mm
1900 mm
2500 mm
3100 mm
3700 mm
4000 mm
4900 mm
Type of Bed
Hardened Bed Ways
Height of Center
267mm (10-12")
304mm (12")
Swing Over Bed
525mm
600mm
Swing Over Cross Slide
320mm
395mm
Swing in Gap
800mm
875mm
Width of Bed
325mm
Length of Gap in Front of Face Plate
200mm
Main Spindle
No. of Spindle Speed
12
Spindle Speed Range
30 to 1060 RPM*
Taper in Spindle
MT-6
Spindle Bore
50mm
79mm
104mm
Spindle Nose
A2 - 6
A2 - 8
A2 - 8
Threads
LEAD SCREW DIAMETER / PITCH
38 mm / 4 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
40
RANGE OF LONGITUDINAL FEEDS
0.066 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.0165 - 0.50 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
60.3 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
280mm
COMPOUND SLIDE TRAVEL
145 mm
TAIL STOCK SLEEVE TRAVEL
170 mm
TOOL POST SQUARE
120mm
TOOL SHANK SIZE
25 mm
SUITABLE ELECTRICAL HP
3 HP / 5 HP (3 Phase)*

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray
  •   Norton Gear Box with Single Shaft

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT
  •   PEDAL STOP
  •   ELECTRICAL THIRD SHAFT

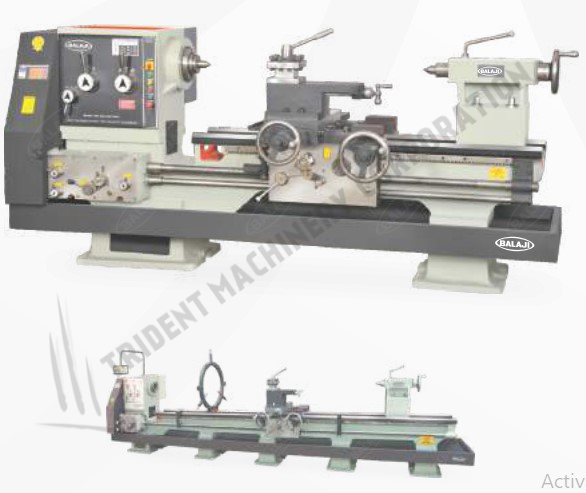

Geared Head Heavy Duty Lathe Machine

  • Model : VGH-304
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
1000 mm
1600 mm
1900 mm
2500 mm
3100 mm
3700 mm
4000 mm
4900 mm
5500 mm
6100 mm
6700 mm
Type of Bed
Hardened Bed Ways
Height of Center
304mm (12")
355mm (14")
380mm (15")
Swing Over Bed
580mm
680mm
730mm
Swing Over Cross Slide
390mm
490mm
540mm
Swing in Gap
890mm
990mm
1040mm
Width of Bed
375mm
Length of Gap in Front of Face Plate
200mm
Main Spindle
No. of Spindle Speed
12
Spindle Speed Range
30 to 1060 RPM*
Taper in Spindle
MT-6
Spindle Bore
79mm / 104mm
Spindle Nose
A2 - 8
Threads
LEAD SCREW DIAMETER / PITCH
38 mm / 4 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
40
RANGE OF LONGITUDINAL FEEDS
0.066 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.0165 - 0.50 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
60.3 mm
TAPER IN TAIL STOCK QUILL
MT - 4
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
325mm
COMPOUND SLIDE TRAVEL
190 mm
TAIL STOCK SLEEVE TRAVEL
170 mm
TOOL POST SQUARE
145mm
TOOL SHANK SIZE
25 mm
SUITABLE ELECTRICAL HP
5 HP (3 Phase)*

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray
  •   Norton Gear Box with Single Shaft

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT
  •   PEDAL STOP
  •   ELECTRICAL THIRD SHAFT

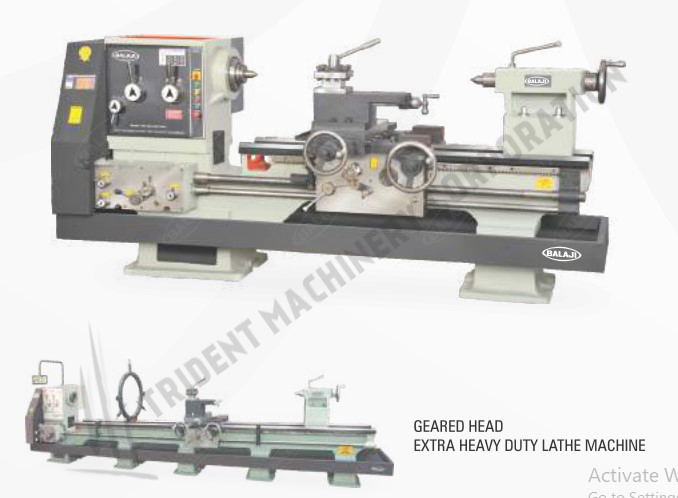

Geared Head Extra Heavy Duty Lathe Machine

  • Model : VGH-406
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
700 mm
1300 mm
1600 mm
2200 mm
2800 mm
3400 mm
4000 mm
4600 mm
5200 mm
5800 mm
6400 mm
Type of Bed
Hardened Bed Ways
Height of Center
406mm (16")
457mm (18")
Swing Over Bed
785mm
885mm
Swing Over Cross Slide
480mm
580mm
Swing in Gap
1100mm
1200mm
Width of Bed
455mm
Length of Gap in Front of Face Plate
250mm*
Main Spindle
No. of Spindle Speed
9
Spindle Speed Range
19 to 310 RPM*
Taper in Spindle
MT-6
Spindle Bore
100mm
Spindle Nose
A2 - 8
Threads
LEAD SCREW DIAMETER / PITCH
44.4 mm / 2 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
40
RANGE OF LONGITUDINAL FEEDS
0.066 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.0165 - 0.50 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
76 mm
TAPER IN TAIL STOCK QUILL
MT - 5
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
500mm*
COMPOUND SLIDE TRAVEL
250 mm
TAIL STOCK SLEEVE TRAVEL
250 mm
TOOL POST SQUARE
175mm
TOOL SHANK SIZE
38 mm
SUITABLE ELECTRICAL HP
5 HP / 7.5 HP (3 Phase) (960RPM)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray
  •   Norton Gear Box with Single Shaft

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT
  •   PEDAL STOP
  •   ELECTRICAL THIRD SHAFT

Geared Head Extra Heavy Duty Lathe Machine

  • Model : VGH-508
Download Brochure Watch Video
Bed
Length of Bed
7' (2100mm)
9' (2740mm)
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
700 mm
1300 mm
1600 mm
2200 mm
2800 mm
3400 mm
4000 mm
4600 mm
5200 mm
5800 mm
6400 mm
Type of Bed
Hardened Bed Ways
Height of Center
508mm (20")
Swing Over Bed
985mm
Swing Over Cross Slide
680mm
Swing in Gap
1300mm
Width of Bed
558mm
Length of Gap in Front of Face Plate
250mm*
Main Spindle
No. of Spindle Speed
9
Spindle Speed Range
19 to 310 RPM*
Taper in Spindle
MT-6
Spindle Bore
100mm
Spindle Nose
A2 - 8
Threads
LEAD SCREW DIAMETER / PITCH
44.4 mm / 2 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
40
RANGE OF LONGITUDINAL FEEDS
0.066 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.0165 - 0.50 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
76 mm
TAPER IN TAIL STOCK QUILL
MT - 5
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
550mm*
COMPOUND SLIDE TRAVEL
250 mm
TAIL STOCK SLEEVE TRAVEL
250 mm
TOOL POST SQUARE
175mm
TOOL SHANK SIZE
38 mm
SUITABLE ELECTRICAL HP
5 HP / 7.5 HP (3 Phase) (960RPM)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray
  •   Norton Gear Box with Single Shaft

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT
  •   PEDAL STOP
  •   ELECTRICAL THIRD SHAFT

Geared Head Extra Heavy Duty Lathe Machine

  • Model : VGH-558
Download Brochure Watch Video
Bed
Length of Bed
10' (3040mm)
12' (3650mm)
14' (4260mm)
16' (4850mm)
18' (5450mm)
20' (6050mm)
22' (6650mm)
24' (7250mm)
26' (7850mm)
Admit between center
1200 mm
1800 mm
2400 mm
3000 mm
3600 mm
4200 mm
4800 mm
5400 mm
6000 mm
Type of Bed
Hardened Bed Ways
Height of Center
558mm (22")
609mm (24")
Swing Over Bed
1075mm
1175mm
Swing Over Cross Slide
750mm
850mm
Swing in Gap
1400mm
1500mm
Width of Bed
660mm
Length of Gap in Front of Face Plate
250mm*
Main Spindle
No. of Spindle Speed
8
Spindle Speed Range
14 to 200 RPM*
Taper in Spindle
MT-6
Spindle Bore
115mm
Spindle Nose
A2 - 11
Threads
LEAD SCREW DIAMETER / PITCH
44.4 mm / 2 TPI
NOS. OF THREADS/RANGE
(FOR FULL NORTON GEAR BOX)
METRIC: 24 / 0.5 mm to 15 mm PITCH
INCH : 44 / 2 to 60 TPI
NO. OF FEEDS
40
RANGE OF LONGITUDINAL FEEDS
0.066 - 2 mm
RANGE OF TRANSVERSE FEEDS
0.0165 - 0.50 mm
TAIL STOCK
TAIL STOCK SPINDLE DIAMETER
100 mm
TAPER IN TAIL STOCK QUILL
MT - 5
TRAVEL AND TOOLS
CROSS SLIDE TRAVEL
550mm*
COMPOUND SLIDE TRAVEL
250 mm
TAIL STOCK SLEEVE TRAVEL
250 mm
TOOL POST SQUARE
200mm
TOOL SHANK SIZE
38 mm
SUITABLE ELECTRICAL HP
15 HP (3 Phase) (960RPM)

Standard Accessories :-

  •   Chuck Back Plate
  •   Center Adapter
  •   Dead Center 2 Nos
  •   Tool Post Spanner
  •   Motor Pulley
  •   Thread Dial Indicator
  •   Change Gear Set
  •   Chip Tray
  •   Norton Gear Box with Single Shaft

Optional Accessories :-

  •   INDEPENDENT CHUCK
  •   SELF CENTRING CHUCK
  •   CHUCK BACK PLATE EXTRA
  •   STEADY REST
  •   FOLLOW REST
  •   FACE PLATE
  •   CARRIER PLATE
  •   TAPER TURNING ATTACHMENT
  •   COOLANT PUMP WITH TANK AND FITTINGS
  •   REAR TOOL POST
  •   ELECTRICALS MOTOR, WIRING, SWITCH, V- BELTS AND FITTINGS)
  •   NORTON GEAR BOX
  •   SPLASH GUARD
  •   FOUNDATION ROUND PLATE WITH LEVELLING BOLTS
  •   QUICK CHANGE TOOL POST
  •   KEY WAY ATTACHMENT
  •   PEDAL STOP
  •   ELECTRICAL THIRD SHAFT
