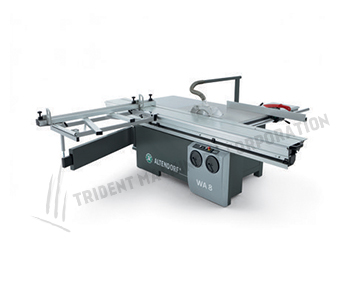

Altendorf WA8T
Products Discription :
The Altendorf WA 8 T adds a touch of class to any workshop. With its easy to operate manual tilt and height adjustment of the saw blade, even complex jobs can be cut quickly and efficiently with the help of the Altendorf WA 8 T.
EQUIPMENT FOR THE WA 8 T :-
- Manual rise/fall and tilt adjustment of the main saw blade
- Sliding table length 2 000, 2 600, 3 000 or 3 200 mm
- Rip fence with manual adjustment, cutting width 1 000 or 1 300 mm
- Crosscut fence, crosscuts to 3 200 mm
- Motor rating 5.5 kW (7.5 HP), with three speeds 3/4/5 000 rpm, manually adjusted
- Cutting height max. 100 mm
Note :
- The Altendorf WA 8 is not available in all markets.
- The standard equipment of the machine may vary from country to country.
Flexible: The Altendorf WA 8 T
with manual rise/fall and tilt adjustment of the main saw blade
Machine frame control panel:
The control panel on the machine frame incorporates a digital display of the tilt angle. The rise and fall and tilt adjustment of the blade are via handwheel.
Protection hood:
The riving knife mounted protection hood allows a maximum saw blade diameter of 350 mm with a maximum cutting height of 100 mm.
Rip fence:
The rip fence is smooth and precise to adjust. The hard chromeplated round bar ensures the fence moves smoothly. If you need to divide large panels, you can swing the rip fence away under the level of the machine table
Crosscut fence:
The robustly mounted crosscut fence enables precise cutting of 90° angles. All settings are easy to read off the slanted scales. The flip stops are robust, free of play and are easy to slide individually along the full crosscutting range.
